PERFECTLY POURED BEER AT THE TOUCH OF A BUTTON

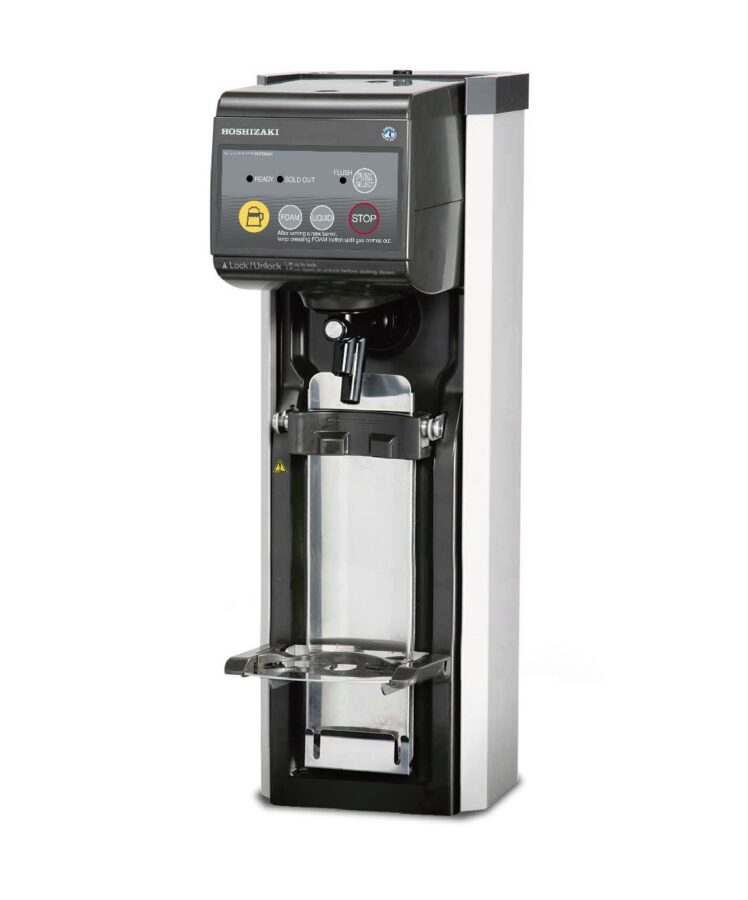

Multitasking is a key skill for every bartender. From taking orders, preparing cocktails and other drinks, processing payments, and keeping the workspace clean to ensuring guests have their full attention and creating a positive atmosphere. The BEERMATIC SINGLE TAP is a fully automatic draft beer dispenser with a mechanism that also pours the head of the beer. The hands-free portion control allows a pre-set quantity of draft beer and the head of the beer to be served. Beer after beer after beer.
CONSISTENTLY HIGH-QUALITY BEER
The beer-to-head ratio can be adjusted to different types of beer or to meet local preferences. The system has a flow rate of 35 ml/s (~1.2 bar, 10m hose) consecutively, without downtime.
INCREASE REVENUE
Until the beer is poured, no additional attention is required. This creates time for additional tasks such as; processing payments, preparing orders or to clean up. These saved seconds seem marginal, but when serving large amounts of people, automated work-sharing becomes a measure for efficient crowd serving.
COST REDUCTION
The BEERMATIC is a great tool for cost control. Portions can be controlled accurately, without spillage of beer and/ or the head of the beer. Waste of draft beer is generally estimated to be as high as 20% per keg (Reference 1)
HYGIENE AND FOOD SAFETY
Accurate portioning avoids spillage entirely, no cutting/skimming needed, and the workspace remains clean at all times. The dispenser’s compartmentalized design is engineered to avoid contamination and to simplify cleaning routines. With this system you can reduce the glass-to-person contact points and maintain the highest standards of food safety, hygiene, and sanitization.
Reference 1. Source: BAR BUSINESS magazine Sept 2016, article ‘7 wasteful sins: How You’re Losing Profit on Draft Beer Sales’
| Specification | Value |
|---|---|
| Item number | 66AZ-D135 |
| Model name | BEERMATIC CFD-AS61A-EU |
| Extended spec sheets approved | 1 |
| Brand | Hoshizaki |
| Warranty period | 2 Years on Parts & Labour - based on country agreement |
| Country of origin | Japan |
| Title | Beer Dispenser, Single Tap |
| Accessories included | Cleaning sponges, Plattform |
| Please observe | The draft beer dispenser is compatible with glasses of 50 mm or over in inside diameter and 105 mm or less in outside diameter. There must be a difference of 20 mm or over in height between a large size glass and a medium size glass. If you use glasses or tumblers of other sizes, please consult our installation manual. Available as special order unit. |
| Width | 170 mm |
| Width (packed) | 795 mm |
| Depth | 307 mm |
| Depth (packed) | 335 mm |
| Height | 520 mm |
| Height (packed) | 410 mm |
| Volume (packed) | 0.1092 m³ |
| Electric Consumption | 0.1 kW |
| Ambient temperature (maximum) | 32 °C |
| Ambient temperature (minimum) | 5 °C |
| Voltage range (Rated Voltage) | ± 10% |
| Electrical circuit breaker protection | 2 A |
| Exterior | ABS front and side panels, bottom plate of galvanized steel |
| Flow Rate | 35 ml/s (~1.2 bar, 10 m hose) |
| Gross weight | 16 kg |
| Net weight | 10.2 kg |
| Power supply | 1/220 - 240V/50Hz |
| Cooling system | For remote cooling system |
| Product type | Beer dispenser |
| Optional Extras | N/A |
| SKU | 66AZ-D135 |
