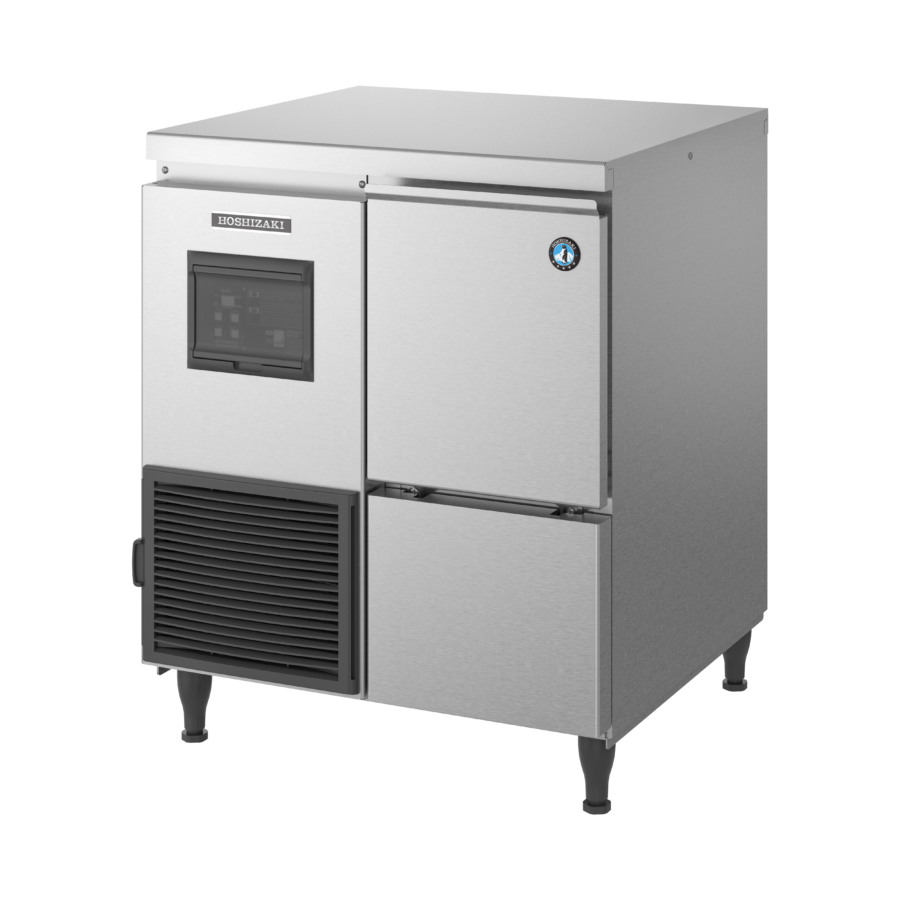

The Hoshizaki FM-80KE-HCN is a self-contained Nugget ice maker producing up to 75 kg of high-quality nugget ice per 24 hours.
In cocktails, the dry and hard ice nuggets are the ideal cooling agent, as they deliver just the right amount of dilution, especially for strong-spirited drinks like Mojitos and Tiki Cocktails.
Sustainable
The FM-80KE-HCN uses refrigerant R290. This natural refrigerant is not only climate-friendly but also boosts the machine when it comes to performance and production capacity.
Material
The exterior is made of stainless steel. The closed water circuit provides maximum protection against any type of contamination during the entire ice production process. All Hoshizaki machines are easy to use, clean, and maintain.
Unique Technology
The FM series has a worktime-based replacement system, which can be monitored with an intuitive control display for preventive maintenance. Hoshizaki was the first to introduce an automated water circuit rinse cycle, to prevent harmful mineral residues from clogging the hydraulic system and maintaining top sanitary conditions.
Smart Design
Like all Hoshizaki Ice makers, the FM-80KE-HCN is designed to last and comes with smart design extras. The Nugget ice maker uses carbon graphite bushings instead of conventional ball bearings allowing the machine to work entirely without grease. Here, the absence of moving parts prevents wear and tear, while the water-lubricated bearings protect the system from unpleasant calcification and bacterial contamination.
Perfect Fit
With outside dimensions W x D x H of 640 x 600 x 800 mm, the FM-80KE-HCN is compact and makes a perfect fit for small spaces.
Plug&Play
The smart plug-and-play design guarantees an extremely easy and quick set-up.
| Specification | Value |
|---|---|
| Item number | F114-C106 |
| Model name | FM-80KE-HCN Extended spec sheets approved 1 Ice maker type Nugget icemaker |
| Brand | Hoshizaki |
| Product configuration | Self Contained |
| Warranty period | 2 Years on Parts & Labour - based on country agreement |
| Country of origin | UK |
| Title | Nugget Ice Maker, Self Contained |
| Accessories included | Installation kit, Scoop |
| Corresponding water filters | 4HC-H Single Water Filter, 4HC Replacement Cartridge |
| Width | 640 mm |
| Width (packed) | 746 mm |
| Depth | 600 mm |
| Depth (packed) | 706 mm |
| Height | 711 mm |
| Height (packed) | 887 mm Volume (packed) 0.4672 m³ Dimensions legs For legs add 87-122mm |
| Electric Consumption | 0.27 kW Energy consumption 0.27 kWh |
| Ambient temperature (maximum) | 40 °C |
| Ambient temperature (minimum) | 5 °C |
| Voltage | range (Rated |
| Voltage | ) ±6% |
| Water supply pressure (maximum) | 0.8MPa (8bar) |
| Water supply pressure (minimum) | 0.05MPa (0.5bar) |
| Water supply temperature (maximum) | 35 °C |
| Water supply temperature (minimum) | 5 °C |
| Electrical circuit breaker protection | 6 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Gross weight | 75 kg |
| Heat Rejection (AT 32°C, WT 21°C) | 0.45 kW |
| Net weight | 65 kg |
| Power supply | 1/220 - 240V/50Hz |
| Storage bin capacity | 32 kg |
| Cooling system | Air Cooled |
| Ice type | Nugget Ice production 75 |
| Water consumption | Air cooled ice makers 0.075 |
| Optional Extras | 4HC-H water filtration |
| CO2 equivalent | 0.189 kg |
| Refrigerant | 0.063 kg |
| Refrigerant type | R290 |
| SKU | F114-C106 |
| Accessory name | Item number |
|---|---|
| 4HC-H Single | 9320-51 |
| 4 HC Replacement Cartridge | 9655-11 |
