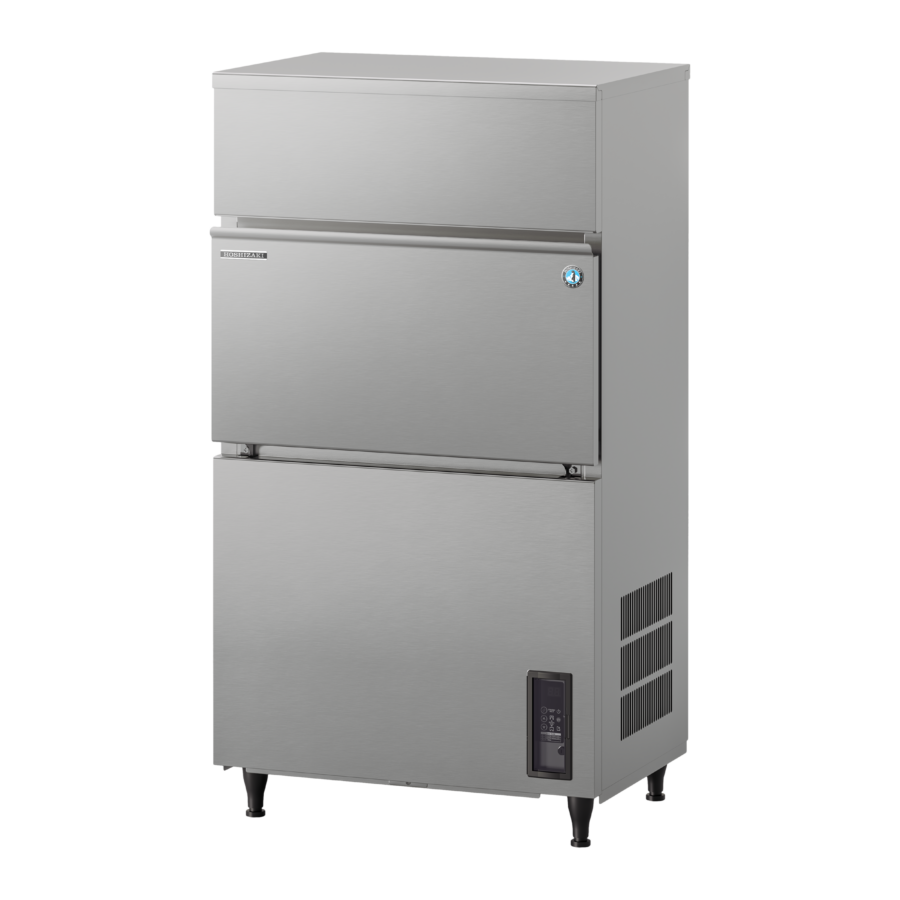

This Hoshizaki IM-130WPE-E-23 is an EliteCUBE variant of a Cuber, Self Contained producing up to 99 kg of the world-famous Hoshizaki ice cubes (Medium cubes – 23) per 24 hours. The dimensions of this model are mm without legs.
TOP-TIER HYGIENE AND FLEXIBILITY WITH INTEGRATED UV SANITIZATION AND A BUILT-IN DRAIN PUMP.
The EliteCUBE combines all the features of the Cube model, along with added enhancements for optimized hygiene and extended flexibility.
It is equipped with Hoshizaki’s innovative UV cleaning mechanism using UV-light flashes to inhibit harmful contamination of the water tank and standing water, ensuring even safer and cleaner ice.
Additionally, EliteCUBE models come with an integrated drain pump, enabling flexible placement of the ice maker, regardless of drain position or height. Thanks to this, project owners can rearrange existing kitchen and bar setups, within a distance of 10 meters and a height of 1.5 meters.
Below is an overview of our new product features and their benefits. We also highlight our legacy features and their continued value.
INCREASED HYGIENE & FOOD SAFETY
INCREASED PERFORMANCE
INCREASED ICE QUALITY
INCREASED DURABILITY
OPERATOR/MAINTENANCE CONVENIENCE
INCREASED ENERGY SAVING
INCREASED FLEXIBILITY
Internal Drain Pump allows for a positioning radius of 10 m distance, 1.5 m height.
INCREASED WATER SAVING
| Specification | Value |
|---|---|
| Item number | M115-D305 |
| Model name | IM-130WPE-E-23 Extended spec sheets approved 1 Ice maker type Cube icemaker |
| Brand | Hoshizaki |
| Product configuration | Self Contained |
| Warranty period | 3 Years on Parts & Labour - based on country agreement |
| Country of origin | UK Sub series IM EliteCUBE |
| Title | Cuber, Self Contained |
| Accessories included | Installation kit, Legs, Scoop Please observe This type of icemaker is on special order only. Please take longer lead times into consideration. |
| Corresponding water filters | 4HC-H Single Water Filter, 4HC Replacement Cartridge |
| Width | 704 mm |
| Width (packed) | 805 mm |
| Depth | 506 mm |
| Depth (packed) | 580 mm |
| Height | 1210 mm |
| Height (packed) | 1375 mm Volume (packed) 0.642 m³ Dimensions legs for legs add 70-110mm |
| Electric Consumption | 0.525 kW |
| Ambient temperature (maximum) | 40 °C |
| Ambient temperature (minimum) | 1 °C |
| Voltage | range (Rated |
| Voltage | ) ±6% |
| Water supply pressure (maximum) | 0.8MPa (8bar) |
| Water supply pressure (minimum) | 0.07MPa (0.7bar) |
| Water supply temperature (maximum) | 35 °C |
| Water supply temperature (minimum) | 5 °C Functions Automated cleaning, UV-C sanitization + Internal drain pump |
| Electrical circuit breaker protection | 5 A |
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Gross weight | 84 kg |
| Heat Rejection (AT 32°C, WT 21°C) | 1.02 kW |
| Net weight | 72 kg |
| Power supply | 1/220 - 240V/50Hz |
| Storage bin capacity | 50 kg |
| Cooling system | Water Cooled |
| Ice type | Medium cubes - 23 Ice production 99 |
| Water consumption | Water cooled ice makers 0.6 |
| Optional Extras | 4HC-H water filtration |
| CO2 equivalent | 0.441 kg GWP 3 GWP |
| Refrigerant | 0.147 kg |
| Refrigerant type | R290 |
| SKU | M115-D305 |
| Accessory name | Item number |
|---|---|
| 4HC-H Single | 9320-51 |
| 4 HC Replacement Cartridge | 9655-11 |
| External drain pump S | 32904 |
