M120-D008

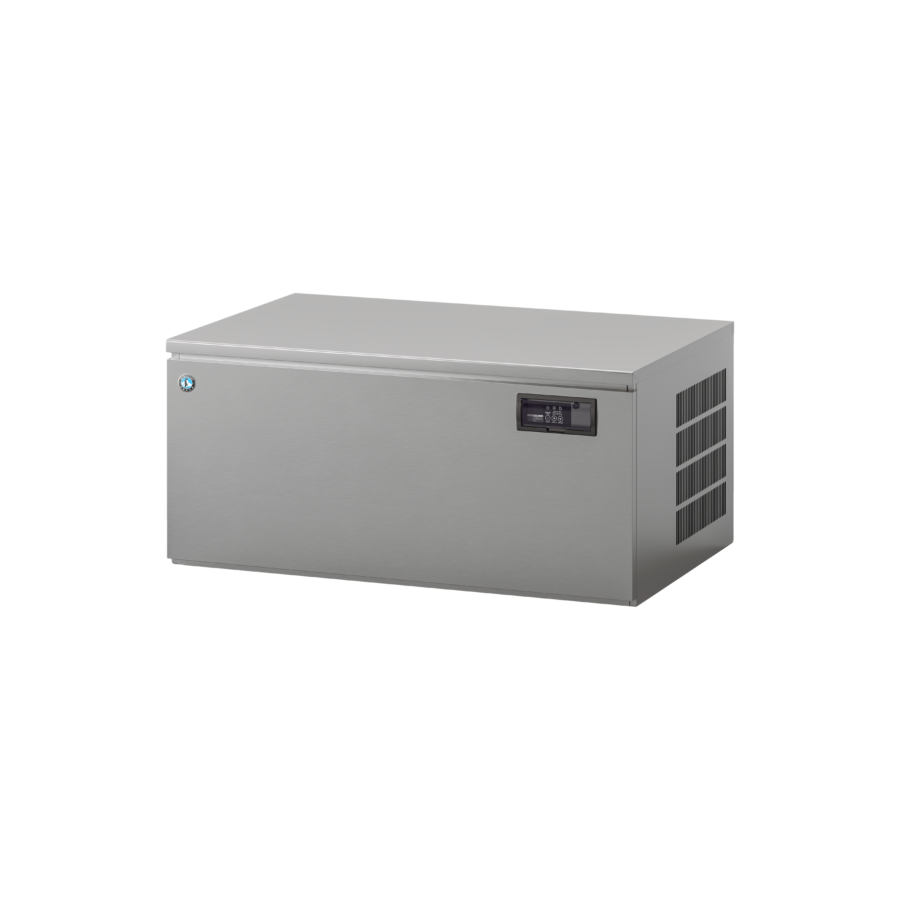

IM-240DWPE Cuber, Modular & Stackable

Ice

Key Features

INCREASED HYGIENE & FOOD SAFETY

NEW: Scoop Holder-Kit (optional)
The closed water circuit provides maximum protection against any type of contamination during the entire cubing process.

INCREASED PERFORMANCE

NEW: More efficient magnetic DC Pump Motor with variable speed
Use of R290 natural refrigerant

INCREASED ICE QUALITY

NEW: Pump motor with smart water flow that adjusts to the different phases of the ice-making process, preventing chipped/cloudy ice cubes.
Closed Cell System, individual cube forming

INCREASED DURABILITY

NEW: Automated Cleaning
NEW: Less Wear & Tear: internal components made of food-grade stainless steel (AISI 430)
NEW: Magnetic DC Pump Motor with variable speed
Highest-grade insulation material (foaming instead of polystyrene)

OPERATOR/MAINTENANCE CONVENIENCE

NEW: Water circuit cleaning notification
NEW: Condenser cleaning notification
NEW: Control panel for easy adjustable dimple size
NEW: Water tank & DC pump are easily removable

INCREASED ENERGY SAVING

NEW: DC Pump Motor with variable speed
NEW: Stand-by function
Highest-grade insulation material (foaming instead of polystyrene)
Use of R290 natural refrigerant

INCREASED WATER SAVING

NEW: Magnetic DC Pump Motor with variable speed
NEW: Improved water tank design to consume less water

Specifications

Specification	Value
Item number	M120-D008
Model name	IM-240DWPE Extended spec sheets approved 1 Ice maker type Cube icemaker
Brand	Hoshizaki
Product configuration	Stackable
Warranty period	3 Years on Parts & Labour - based on country agreement
Country of origin	UK Sub series IM Cube
Title	Cuber, Modular & Stackable
Accessories included	brace, Installation kit, Scoop
Corresponding water filters	4HC-H Twin Water Filter, 4HC Replacement Cartridge
Width	1084 mm
Width (packed)	1196 mm
Depth	700 mm
Depth (packed)	825 mm
Height	500 mm
Height (packed)	640 mm Volume (packed) 0.6315 m³
Electric Consumption	0.76 kW
Ambient temperature (maximum)	40 °C
Ambient temperature (minimum)	1 °C
Voltage	range (Rated
Voltage	) ±6%
Water supply pressure (maximum)	0.8MPa (8bar)
Water supply pressure (minimum)	0.07MPa (0.7bar)
Water supply temperature (maximum)	35 °C
Water supply temperature (minimum)	5 °C Functions Automated cleaning
Electrical circuit breaker protection	5 A
Exterior	Stainless steel AISI 441, Galvanized steel (Rear)
Gross weight	97 kg
Heat Rejection (AT 32°C, WT 21°C)	1.47 kW
Net weight	82 kg
Power supply	1/220 - 240V/50Hz
Cooling system	Water Cooled
Ice type	Large cubes, Standard Ice production 209
Water consumption	Water cooled ice makers 0.99
Optional Extras	4HC-H water filtration, UV-C sanitization kit, compatibility kit for stacking combinations including new and previous N series ice makers. Corresponding Bin(s) B-340SB
CO2 equivalent	0.441 kg GWP 3 GWP
Refrigerant	0.147 kg
Refrigerant type	R290 Corresponding top kits TK-48 for B-340SB (optional, not required), TK-IMD2 for B-340SB
SKU	M120-D008
