B-210SB Ice storage Bin

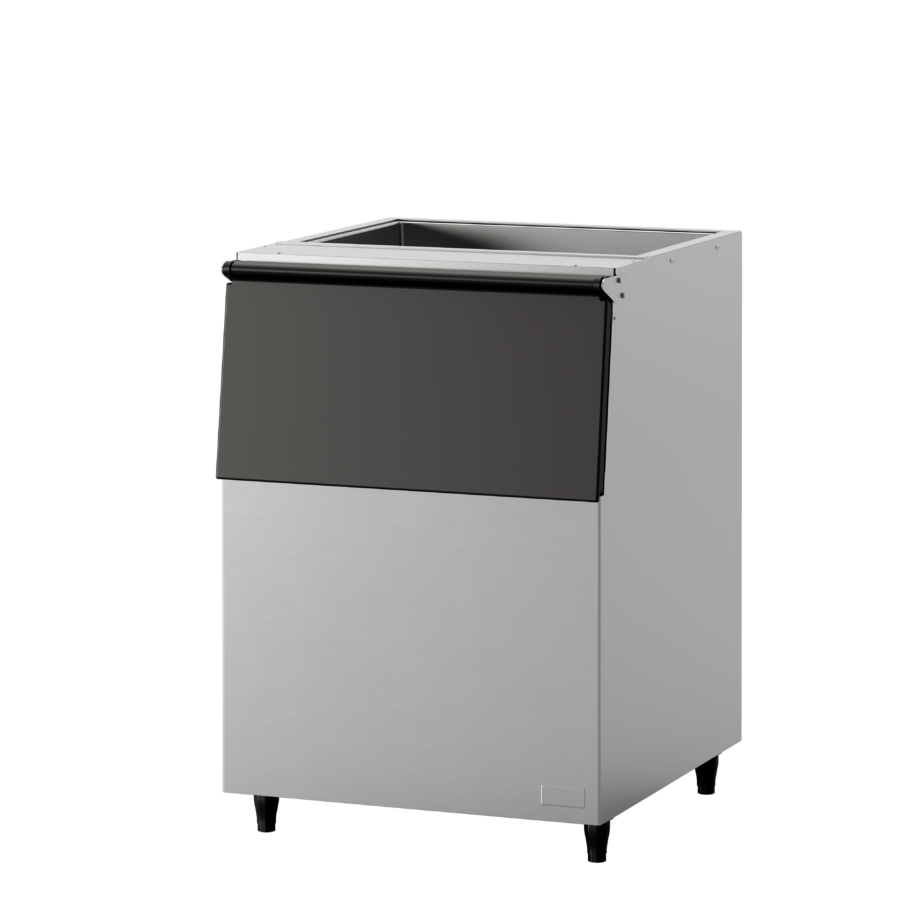

The Hoshizaki B-210SB is a Ice storage Bin with a net capacity of 0 Ltr. The storage bin configures perfectly with Hoshizaki ice makers to ensure ample quantities of ice at all times.
The sturdy construction for side-by-side or stacked installations, as well as the non-corrosive bin liner, provide safe and sanitary storage of produced ice.
Key Features
Material
The stainless steel exterior provides a long-lasting attractive appearance, as well as easy-to-clean surfaces for food-safe operations.
Food Safety
The bin is designed to simplify cleaning routines. There are no edges, crevices, or rough joints, where residue could be trapped. The rounded and smooth surfaces help you to wipe the bin quickly and easily.
Specifications
| Specification | Value |
|---|---|
| Item number | M191 |
| Model name | B-210SB |
| Brand | Hoshizaki |
| Warranty period | 2 Years on Parts & Labour - based on country agreement |
| Country of origin | UK |
| Title | Ice storage Bin |
| Accessories included | Legs, Scoop, Scoop holder Please observe Allow 10 mm extra space at the installation site to meet any installation requirements (additional spacing is also required for proper air flow and water connections). Extended spec sheets approved 1 |
| Width | 762 mm |
| Width (packed) | 871 mm |
| Depth | 820 mm |
| Depth (packed) | 928 mm |
| Height | 1016 mm |
| Height (packed) | 1201 mm Volume (packed) 0.9708 m³ Dimensions legs For legs add 90-135 mm |
| Exterior | Stainless steel, galvanized steel (rear), plastic door Interior Polyethylene |
| Gross weight | 62 kg |
| Net weight | 48 kg |
| Storage bin capacity | 210 kg |
| Optional Extras | Topkit TK-30 (insulation strip for extra insulation) |
| SKU | M191 |
Documentation
| Documentation | Download |
|---|---|
| Declaration Of Conformity | Download |
Accessories
| Accessory name | Item number |
|---|---|
| TK-8D S | 21871 |
| TK-18D S | 21872 |
| TK-30 / TK-48 S | 24154 |
| TK-4DM S | 31045 |
| TK-4DR S | 31046 |
| TK-IMD2 S | 31047 |
| TK-FM | 1800 |
| S | 31707 |
